Welcome to Scintek
Scintek is a manufacturer and supplier of scintillators and custom phosphor-coated optics. We offer a wide variety of products for all direct view and digital imaging requirements.
Our clients come from a wide range of industries including Material Science (RHEED/LEED), Microscopy and Semiconductor manufacturing, as well as optical luminescent coatings for a number of Universities, National Laboratories and Research agencies.
Experience
Scintek brings many years of experience to the table. Coupled with rigorous research and development, we continually stay ahead of the quickly emerging imaging technologies.
-
We manufacture, stock, and re-coat all common sizes and types of RHEED screens.
-
We also supply mounts, holders, CF viewports, and complete assemblies
-
Highest quality coatings and assemblies
-
Customized Phosphor Screens and Scintillators
-
Timely delivery and Competitive pricing
Our technical staff is both knowledgeable and responsive to your needs. Our focused dedication gives you a personalized service you wouldn't get with other companies. We are continually researching as well as developing new ways to optimize our products' performance.
Products for MBE
RHEED/LEED Screens, Assemblies, Recoats
RHEED/LEED screens are manufactured to customer specifications. Mounting holders and glass are manufactured and designed to customer specifications.

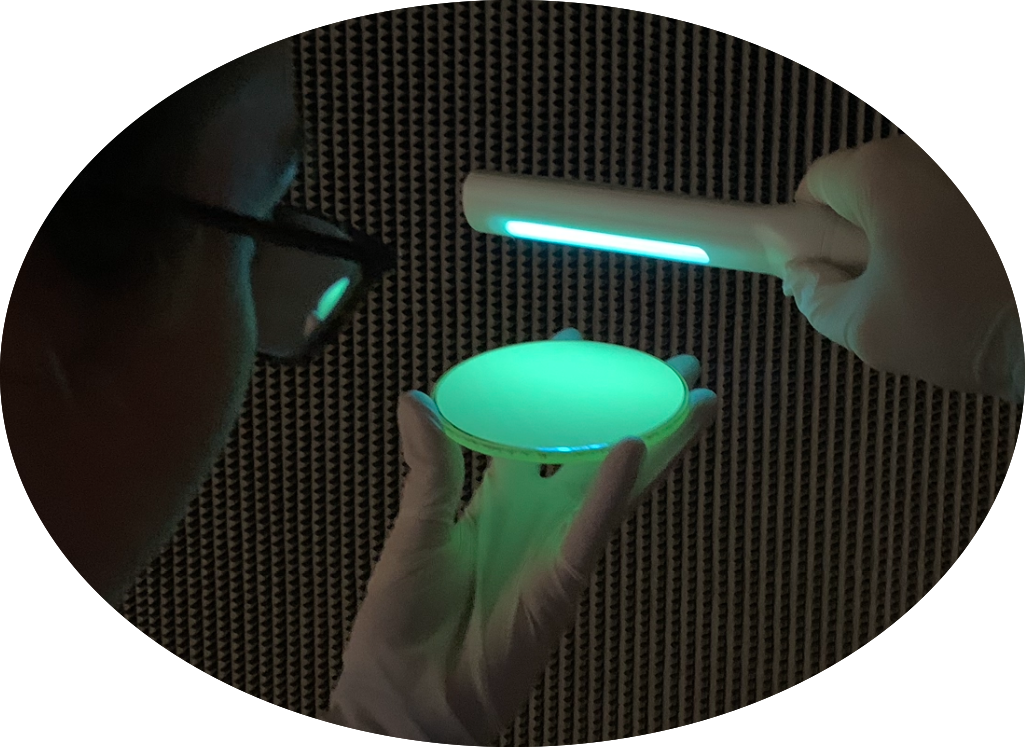

We can supply the Coated glass, or we can manufacture the mounting hardware with the screen installed. Generally, the glass is borosilicate, optically polished with an ITO conductive layer on the inner surface and the outer edge. The standard phosphor is P43 (Gd2O2S: Tb). Other Phosphors are available upon request.
RHEED Screen Products
RHEED Screen Sizes
Re-coat Screens
Refurbished Screens
Refurbished screens are available at a discount as well. A refurbished screen is either a recoated screen we have in stock, an overrun, or a new screen with some sort of defect that is aesthetic in nature won't affect the performance of the screen. (Example: A small chip on the edge or slight discoloration in the glass) See our list of refurbished screens.
Standard Phosphor is Gd2O2S:Tb (GREEN P43) Other phosphors available. Please check our available Phosphor materials and specs here.
Viewport Mounting Holders
Viewport Mounting Hardware is manufactured in house using Aluminum or Stainless Steel.
Available sizes:
MH-90 Mounting holder for 90mm RHEED Screen
MH-93 Mounting holder for 93mm RHEED Screen
Viewport Protection
LG6VPS 6" lead glass conflat viewport x-ray shield
LG8VPS 8" lead glass conflat viewport x-ray shield
Luminescent Products for other Surface Analysis
Targets, MCP's, Electro-optics, Sensors, UV, IR, Etc.
Scintek Manufactures a wide variety of phosphor imaging products for the material sciences which include micro-channel plates, electro-optics, and diffractive surface analysis applications along with customizable designs for short run projects that require a phosphor coated surface. Our products mainly use Borosilicate, Fused Silica, and protective leaded glass of various types although other substrate types are available upon request if needed,
We also design and fabricate the mounting hardware for any size conflat flange. All coatings are perfectly uniform, durable and the thickness of the phosphor layer is a dense 10-15 microns giving you added brightness and sharper clarity. For surface conductivity, we offer either a transparent conductive layer of ITO on the glass or an aluminum overlay over the back of the coating ( which also adds brightness) or both. Whether the priority is resolution, brightness, decay speed or durability, Scintek offers the best products with competitive pricing. For more information, please click on our contact page and fill out the online form or give us a call. Many other phosphors are available upon request.
High-resolution Scintillators, Phosphor Imaging Plates
We manufacture scintillators for digitital imaging applications ranging from Electron Microscopy and Electro-Optics to various X-Ray applications. In many of these applications, it is imperative that with ultra high resolution, brightness, signal to noise ratio and uniformity are optimized to the highest level. Resolution requires an ultra thin coating, brightness requires dense compact coating and a bright reflective aluminum overlay. These types of imaging products are our specialty.
Every customer has unique requirements and we are set up to cater to that.
Customized Phospher Products
Scintek can design and customize virtually any scintillator or phosphor imaging product for just about any application. We stock some common sizes of glass and material (listed below), or we can fabricate whatever material you need. Coating thickness can range from a few microns op to 100 microns depending on brightness and resolution needs. If needed, a transparent conductive coating can be applied to the substrate. In most cases, an aluminum overlay can be deposited over the back of the coating (which adds brightness and conductivity)
Scintillator Sheets
Mylar, Aluminum, Stainless, Brass, Carbon Fiber
Phosphor coated sheets and scintillators have been used in the X-ray and diffraction field for some time. In fact, some of our screens have been used in Genome analysis. Materials are generally clear mylar, aluminized mylar, white mylar ( 2 mil or 5 mil) as well as thin stainless and aluminum sheeting. Other substrate materials are available upon request and the size can range from a square centimeter up to 30cm (~12"). Larger sizes are available. Thickness varies from 15 microns on up to 100 microns depending on brightness and a l/p resolution requirements.
